Kreg R3 Pocket Hole Jig System

What's in the Box
Clamp pad adapter, drill and drive bits, depth collar with hex key, five pocket hole screws, pocket hole plugs, and carrying case.

Amazon.com Product Description
The Kreg Jig Jr. (R3) is an amazing repair jig and an exceptionally handy addition to any tool collection. Whether you're crawling under a table to make a quick repair or taking Kreg Joinery on the road, the Jr.'s compact design lets you work where you need to most, and it gives you what you need to start building wood joints that will last the life of your creation.

The Kreg Jig Jr. offers: A compact design that lets you work wherever you need Easy-press positioning sliders with 9 settings 2-Hole Drill Guide with Hardened Steel Core and Lifetime Warranty Convenient design can be used with any standard bar clamp or a c-clamp

Miter joints for picture frames can be completed quickly, since the positioning legs move independently of one another. View larger.

The Kreg Jig Jr. is built to work with any style of clamp and adjusts easily for different material thicknesses. View larger.

Adjusting the Kreg Jig Jr. for different applications is quick and easy. View larger.

With Kreg Joinery, you can finish projects in hours instead of days. You won't spend any time clamping, waiting for glue to dry, or wading through complicated math. It essentially involves drilling a hole at an angle into one workpiece, and connecting it to another workpiece with a self-tapping screw.

Amazingly Strong with Half the Effort
Unlike mortise and tenons, dowels, and biscuits, the self-tapping screws inside of every Kreg Joint hold the stock together without glue. You don't have to worry about precisely lining up dowel holes, or spending hours cutting a perfect mortise and tenon--you simply drill the holes, drive the screws, and move on to the next project.

And because what you see is what you get with Kreg Joinery, you won't spend all your time calculating stock-overlaps and dry-fitting individual workpieces. All you need is simple math to get fast and accurate results.

Kreg Jig Jr: The Perfect Home-Repair Tool
The Kreg Jig Jr. is an amazing repair jig with a compact design that lets you work where you need to most. Thanks to its Clamp Pad Adapter, the Jr. can be secured to the workpiece with any standard bar clamp or c-clamp. In addition, the adapter allows the jig to be attached directly to any Kreg Face Clamp (sold separately) for faster and more repeatable pocket-holes.

From thin drawer boxes and craft projects to stout 2x4's, this jig can handle them all. Independent Easy-Press positioning sliders feature nine separate depth settings, allowing you to easily join materials from 1/2-inch to 1-1/2-inches thick in 1/8-inch increments. And to set the jig properly, you simply depress the button on the side of the jig and move the sliders so your material thickness is aligned with the arrow on the jig body. It couldn't be any easier.

The Kreg Jig Jr. includes a compact, durable plastic carrying case that will ensure that you always have the tool, drill bit, and screws on hand to complete your next project. As a bonus, the case features a molded depth collar gauge for a handy reference.

In addition to the Kreg Jig Jr. (model R3), Kreg offers DIYers and anyone new to Kreg joinery the Kreg Jig (model K4). For serious wood workers, Kreg offers the Kreg Jig Master System (model K3MS), the ultimate kit for Kreg Joinery.

The Kreg Difference
While each Kreg Jig has its own features designed to meet the particular needs of its users, all Kreg Jigs share a design and high-quality construction which add up to the "Kreg Difference."

Kit includes everything you need to get started.

To create a cleaner pocket-hole and a more finished appearance, all Kreg Jigs shroud the bit and support the workpiece through 100-percent of the drill-stroke. The end result is minimal bit deflection, reduced tear-out, and a clean, pluggable Pocket-Hole fit for finished work.

Every Kreg Jig also features an optimized 15 degree drilling angle designed to increase driving efficiency and minimize the overall size of the Pocket-Hole. This same Pocket-Hole can be created by the Kreg Jig in materials from 1/2- to 1-1/2 inches thick.

The Kreg Jig Jr. includes a 30 Day Customer Satisfaction Guarantee and Lifetime Warranty on its Hardened Steel Drill Guide.

What's in the Box

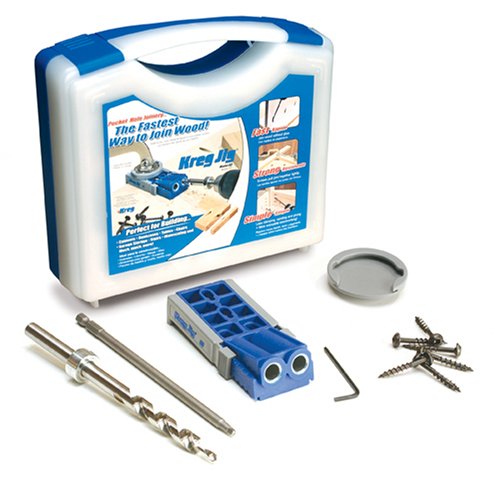

Kreg Jig Jr., clamp pad adapter, stepped drill bit, 6 driver bit, depth collar, allen wrench, starter screw set, and durable carrying case.
